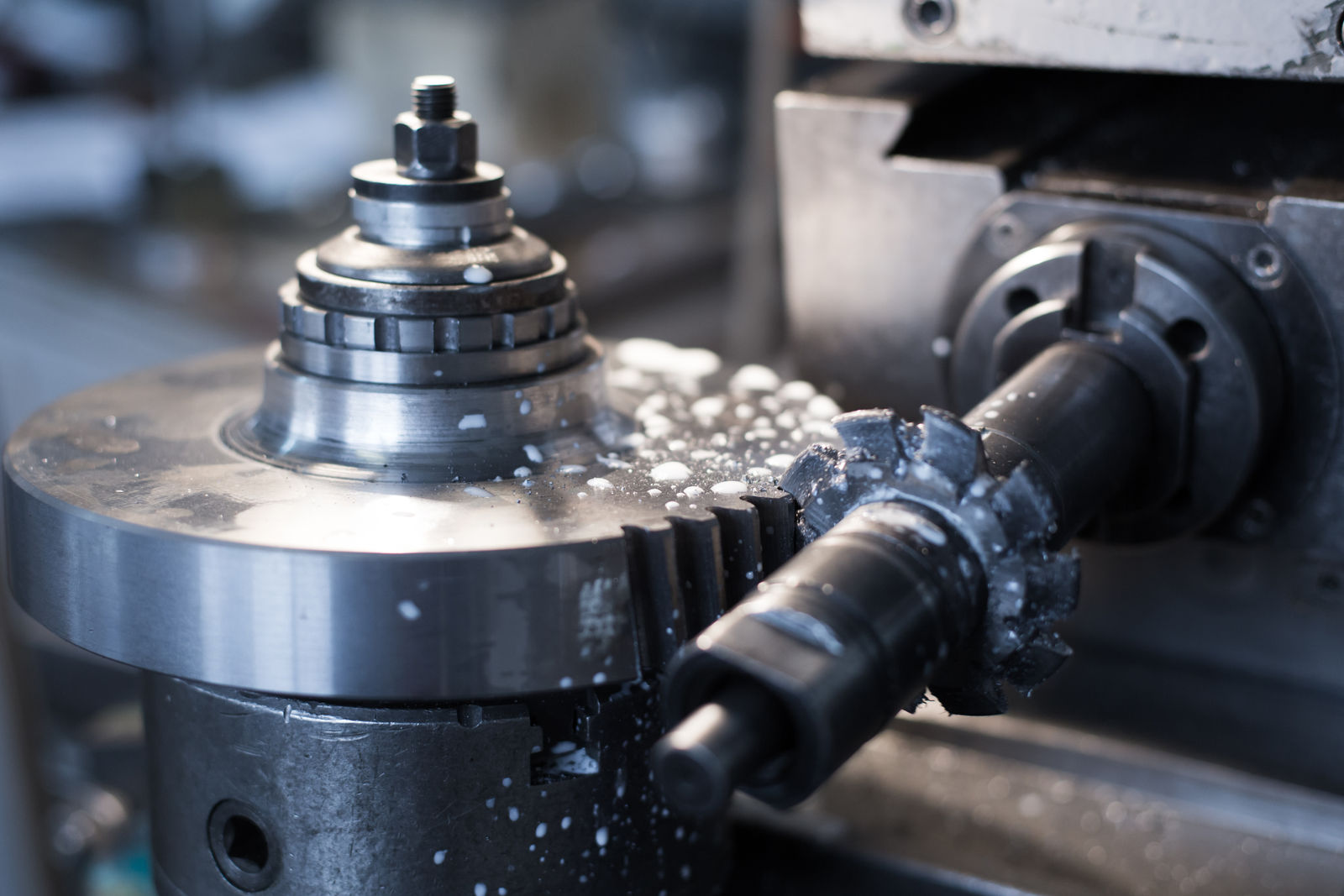

A Blank Look

Gear blank material specification

The gear blank is the quality ceiling of the finished gear. This article covers two areas of material specification that directly affect gear performance: controlling hardenability when sourcing blanks across global supply chains, and specifying microalloyed steels for high-temperature carburizing.

1. Grade Substitution

A frequent substitution scenario involves a North American or European OEM specifying SAE 8620 or 18CrNiMo7-6, and a supplier in China or India proposing 20CrMnTi (GB/T 3077) as an alternative. The composition tables look close enough on paper. The Jominy curves do not.

The Hardenability Gap

20CrMnTi is a Cr-Mn-Ti carburizing steel with no nickel and no molybdenum. SAE 8620 contains both Ni (~0.40–0.70 percent) and Mo (~0.15–0.25 percent). 18CrNiMo7-6 contains substantially more Ni (~1.40–1.70 percent) and Mo (~0.25–0.35 percent). Nickel and molybdenum are the primary contributors to deep hardenability, the ability to develop martensitic or bainitic transformation products at the slow cooling rates experienced in the core of a thick gear section.

For thin-section gears (module 4–6, pitch diameters under 150 mm), this difference may not matter operationally: cooling rates during oil quench are fast enough that all three grades achieve acceptable core hardness. For thick-section gears, pitch diameters of 500 mm, and face widths of 200 mm, the hardenability gap becomes a functional problem. At those cross-sections, core cooling rates during oil quenching are slow enough that 20CrMnTi may not develop sufficient martensite or bainite, while 8620 or 18CrNiMo7-6 would.

The titanium in 20CrMnTi does useful work: it pins austenite grain boundaries during carburizing, improving bending fatigue life. But titanium does not contribute meaningfully to hardenability. A 20CrMnTi blank that delivers excellent surface hardness after carburizing may simultaneously have a soft, predominantly ferritic-pearlitic core in a thick section where 8620 or 18CrNiMo7-6 would have produced bainite or low-carbon martensite. That core condition directly affects tooth root bending strength, resistance to case crushing under high contact loads, and dimensional stability in service.

What's in a Grade Name?

Even within a single grade, heat-to-heat hardenability variation is a major source of gear distortion scatter, and the problem intensifies when grades are substituted across regional supply chains.

Standard H-band steel at the J4 and J8 Jominy positions can show a spread of 12–14 HRC from the highest to the lowest heat. Even RH (restricted hardenability) steel has been documented with a 7–8 HRC difference at those positions. That variation translates directly into unpredictable volumetric changes during quenching, different proportions of martensite, bainite, and retained austenite forming from lot to lot, producing different distortion from lot to lot.

In one documented case, a gear manufacturer had to make continual size adjustments before carburizing to compensate for lot-to-lot material variation. The steel met specification requirements but arrived at the extremes of the control range. The problem was solved only by specifying DI values in a narrow control range, which produced predictable part growth after carburizing and eliminated a costly manufacturing step.

Restricted hardenability grades such as 18CrNiMo7-6 HH (high hardenability, restricted to the upper third of the standard band) reduce lot-to-lot variation in core hardness and case depth. Some automotive OEMs purchase steel with as little as one Rockwell C point of variation throughout the Jominy range for their most distortion-sensitive gears.

When a grade substitution moves from 18CrNiMo7-6 HH sourced from a European mill to standard-band 20CrMnTi, the change is not just chemical. It is likely a move from a ±1–2 HRC hardenability window to one spanning 8–10 HRC at the relevant Jominy distances. The resulting distortion scatter can overwhelm any downstream grinding allowance designed for the tighter material.

The Distortion Mechanism

Distortion of a carburized gear is governed by the transformation sequence during quenching, which depends on the continuous cooling transformation (CCT) diagram of the specific steel composition. Modeling of an AISI 4320 carburized pinion showed distortion of approximately 0.15 mm, roughly an order of magnitude greater than the same geometry in AISI 8620. The higher hardenability of 4320 produces a larger martensite fraction with correspondingly greater volumetric expansion.

This is counterintuitive: the higher-performance grade distorts more. Substituting a lower-hardenability grade (like 20CrMnTi) for a higher-hardenability one (like 18CrNiMo7-6) does not simply produce a worse gear, it produces a different distortion pattern that the existing heat treatment process, quench fixture design, and grinding stock allowance were not calibrated for.

What to Specify Instead of "Equivalent Grade"

For any cross-regional grade substitution on carburized gears, the minimum qualification protocol should include:

Jominy testing on actual production heats from the proposed source—not mill cert chemistry plugged into a hardenability calculation. The calculation assumes ASTM No. 7 grain size and standard alloy multipliers; actual production material may deviate significantly due to steelmaking practice, ingot segregation, and prior thermal history.

DI specification instead of (or in addition to) Jominy band—for thick-section gears, a narrow DI range (e.g., 2.0–2.3 inches) provides a single number that integrates all alloying effects and correlates more directly to core transformation behavior than individual Jominy distances.

Carburizing trials on the candidate material using the production furnace, carbon potential, and quench system—because carburizing response depends on alloy-atmosphere interaction, and quench distortion depends on the specific quench severity of the production system, not a theoretical H-value.

Distortion mapping of production-representative gears—comparing the candidate material against the incumbent on the same gear geometry, carburizing cycle, and quench setup. This is the only reliable method for determining whether the substitute material will fit within existing grinding stock allowances.

Treating hardenability as a controlled specification, not a consequence of composition, is the difference between a functioning multi-source supply chain and a recurring quality problem.

2. Microalloyed Gear Steels

The economic case for high-temperature carburizing is straightforward. Raising the carburizing temperature from 930°C to 1,030°C reduces total process time by approximately 40 percent for a 1.5 mm case depth in 18CrNiMo7-6. For deeper cases, the savings are larger; a 55 percent reduction has been verified when increasing from 950°C to 1,050°C for a 3 mm case depth in 15CrNi6. These reductions are driven by faster carbon diffusion at elevated temperatures and, in low-pressure carburizing (LPC) processes, by the ability to target higher surface carbon content per carburizing pulse due to the shift in the carbide precipitation limit.

The metallurgical problem is equally straightforward: standard gear steels grain-coarsen at those temperatures, and the consequences are severe.

What Happens Without Microalloying

Pulsator testing of standard (non-microalloyed) 18CrNiMo7-6 gears carburized by LPC at 1,050°C showed significantly lower tooth root bending strength than the same grade carburized at 940°C. The cause was grain growth during the elevated-temperature cycle. At 1,050°C, the austenite grain boundaries in conventional 18CrNiMo7-6 are no longer effectively pinned—the AlN precipitates that provide grain boundary restraint in standard grades dissolve or coarsen, and grains grow uncontrolled. The resulting coarse, mixed grain structure directly degrades bending fatigue performance.

This is not a subtle effect. The strength loss eliminates the economic benefit of the shorter carburizing cycle—the gear is cheaper to heat treat but fails sooner.

How Microalloying Solves the Problem

Adding niobium and titanium in the ppm range (typically 200–400 ppm Nb, 50–100 ppm Ti) to established carburizing grades produces fine, thermally stable carbonitride precipitates, NbC, TiN, and mixed (Nb, Ti)(C, N), that pin austenite grain boundaries at temperatures well above the capability of conventional AlN pinning.

The mechanism relies on complementary characteristics of the two elements. Titanium nitride precipitates have high thermal stability and resist dissolution at carburizing temperatures. Niobium carbide precipitates are finer and more homogeneously distributed, providing more effective boundary pinning per unit volume fraction. Mixed Nb-Ti carbonitrides combine both advantages: they resist dissolution at very high austenitizing temperatures better than either single-element precipitate alone.

The results are quantifiable. Research on Nb+Ti microalloyed 18CrNiMo7-6 has demonstrated fine and uniform grain structures even in the 1,000–1,150°C range, with pseudo-carburizing treatments up to 8 hours at temperature. The conventional base steel shows abnormal grain growth under the same conditions. Comparable work on 20CrMnTi confirms that Nb-Ti-Mo microalloying raises both the grain coarsening temperature and the coarsening time threshold relative to Ti-Mo variants. Studies on Nb-microalloyed 20MnCr gear steel show that niobium extends the time before grain coarsening by approximately 4 hours compared to Al-microalloyed variants at the same temperature. Separately, research on Nb-modified SAE 8620 has established that a critical distribution of fine NbC precipitates, stable at the austenitizing temperature, is necessary to suppress abnormal grain growth, and that the prior thermal history, including heating rate, affects whether that distribution develops.

The Distortion Benefit

The grain size story connects directly to the distortion problem discussed in Section 1.

Martensite start temperature depends on austenite grain size; smaller grains lower Ms. In a mixed-grain-size structure, transformation occurs at different temperatures across different regions of the part, generating internal stresses from volumetric changes as austenite transforms to martensite. Larger grain size scatter therefore produces larger distortion scatter.

This has been experimentally verified. Components manufactured from a Nb+Ti microalloyed variant of 25MoCr4 (320 ppm Nb, 90 ppm Ti, 160 ppm N), carburized at 980°C for 195 minutes to a target case depth of 0.95 mm, showed substantially lower roundness deviation after oil quenching than the same geometry in standard 25MoCr4. The improvement came entirely from the material; the heat treatment cycle was unchanged.

For gear blank specification, a microalloyed grade effectively narrows the distortion band, reducing the grinding stock allowance needed to achieve final tooth geometry. That translates to less material removed at the grinder, less risk of grinding burn, and shorter finishing cycle times.

Blank Specification

The shift toward high-temperature LPC creates a hard requirement: the blank must be made from a microalloyed variant of the specified gear steel. A standard-grade 18CrNiMo7-6 blank processed through a 1,030°C+ LPC cycle will produce gears with degraded tooth root bending strength. The microalloy additions are not optional; they are a prerequisite for the heat treatment to deliver the expected mechanical properties.

This has specific implications for procurement:

The grade callout must specify microalloying. A purchase order for "18CrNiMo7-6 per EN 10084" does not guarantee Nb or Ti content, because the standard composition range does not require these elements. The microalloy additions must be specified explicitly, either by referencing a supplier's proprietary microalloyed variant or by adding Nb and Ti requirements to the material specification.

The blank supplier and the heat treater must be aligned. If the heat treater is running LPC at 1,030°C+, the blank must arrive in a microalloyed grade. If the blank supplier substitutes standard-grade material—whether intentionally or through stock mixing—the grain coarsening will occur in the furnace and will not be detectable until tooth root testing reveals the strength loss. By that point, the entire batch is compromised.

Microalloyed grades do not negatively affect machinability. Published data indicate no adverse effect of Nb+Ti microalloying on gear cutting operations—hobbing, shaping, and grinding performance are comparable to the base grade. The additions are in the ppm range and do not significantly alter the matrix hardness or inclusion population that governs tool wear.

The cost of the microalloy additions is small relative to the process savings. Niobium and titanium at the quantities required represent a modest per-kilogram premium on the steel. The 40–55 percent reduction in furnace time for high-temperature LPC far outweighs this material cost increase, but only if the blank specification captures the requirement.

Summary

Both topics come back to the same point: the gear blank material specification must control more than the base alloy composition.

Section 1 describes what goes wrong when hardenability is treated as a consequence of composition rather than as a controlled variable. Section 2 describes what goes wrong when a carburizing cycle is designed for a microalloyed steel and the blank arrives in standard grade. In both cases, the blank looks correct on a dimensional inspection report and may even meet the base chemistry specification. The failure is invisible until heat treatment, and by then it has propagated through the entire production lot.

The practical response is the same in both cases: specify the material more precisely than the grade name alone. Control the hardenability band. Specify the microalloy content. Verify on actual production heats, not on mill cert chemistry. The gear blank is the first point in the process chain where these controls can be applied, and the last point where they can be applied cheaply.

References

1. Wicklund, M. A. (2015). "Improved Materials and Enhanced Fatigue Resistance for Gear Components." AGMA Technical Paper 15FTM02. Also published in Thermal Processing, October 2018.
2. An, D., et al. (2019). "Suppression of Austenite Grain Coarsening by Using Nb–Ti Microalloying in High Temperature Carburizing of a Gear Steel." Advanced Engineering Materials, Vol. 21, No. 10, 1900132.
3. Zhu, Y., et al. (2023). "On the grain coarsening behavior of 20CrMnTi gear steel during pseudo carburizing: A comparison of Nb-Ti-Mo versus Ti-Mo microalloyed steel." Materials Characterization, 204, 113188.
4. Zhu, Y., Fan, S., Lian, X., & Min, N. (2024). "Effect of Precipitated Particles on Austenite Grain Growth of Al- and Nb-Microalloyed 20MnCr Gear Steel." Metals, Vol. 14, No. 4, 469.
5. Alogab, K. A., Matlock, D. K., Speer, J. G., et al. (2007). "The Influence of Niobium Microalloying on Austenite Grain Coarsening Behavior of Ti-modified SAE 8620 Steel." ISIJ International, Vol. 47, No. 2, 307–316.
6. Hippenstiel, F., et al. (2017). "Optimized Gear Performance by Alloy Modification of Carburizing Steels for Application in Large Gear Sizes." NiobelCon / CBMM Technology Suisse.
7. Yang, Y. H., et al. (2013). "Microstructure and Mechanical Properties of Gear Steels After High Temperature Carburization." Journal of Iron and Steel Research International, Vol. 20, No. 12, 140–145.
8. Guo, J., et al. (2022). "The Carburizing Behavior of High-Temperature Short-Time Carburizing Gear Steel: Effect of Nb Microalloying." Steel Research International, Vol. 93, No. 11.
